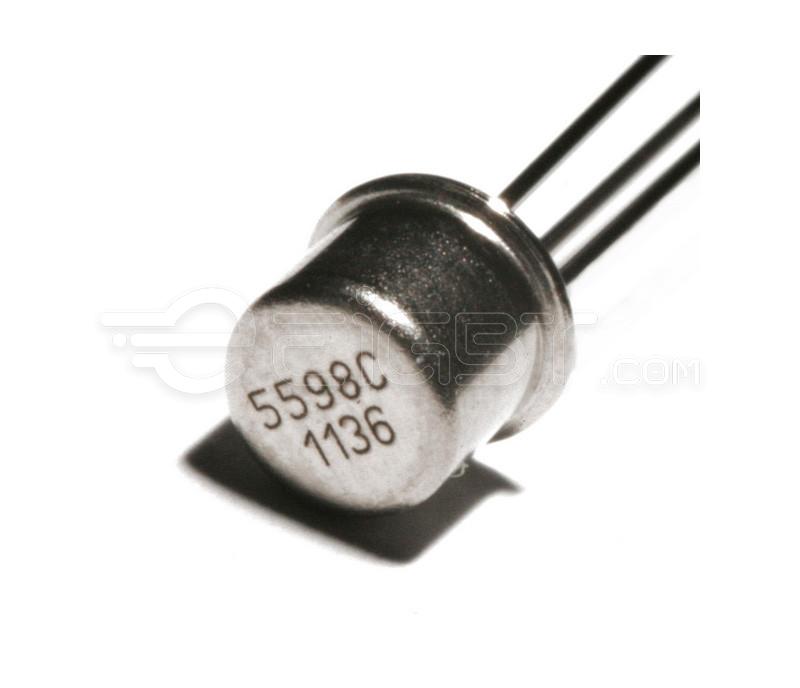

The CHT-5598C is a high temperature dual series 80V / 300mA diode in a hermetically sealed TO18 metal can package. It is designed to achieve high performance in an extremely wide temperature range: typical operation temperature goes from -55°C to 225°C while keeping leakage currents low. This dual diode can be used in a variety of applications, including rectification, clamping and general purpose.

Typical performances:

Temperature range: -55°C to +225°C
Maximum reverse voltage: 80V
Max forward current @ 225°C: 300mA
Capacitance: 8.5pF
Reverse leakage: 8.9µA @ 225°C
TO18 metal can package

Application

Clamping
Voltage multiplier / charge-pumps
Signal rectification
General purpose diode

If you need support for your high temperature design, contact Cissoid.

Download CISSOID's Altium Library for IC symbols and package footprints. For installation, read the related Application Note.

CHT-5598C Dual Diode 80V/300mA - Series connection

Die Map

Supporting its customers in the manufacturing of high temperature and high reliability hybrid modules, CISSOID delivers most of its CHT products as bare die. Please, do not hesitate to contact CISSOID to request die map information including die dimension, die finish, location and description of the bonding pads.
