Manufacturer: CISSOID
Model:CHT-5520A
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Stock Condition:New original, 158 pcs Stock Available.
Ship From:Shen Zhen / Hong Kong
Shipment Way:DHL/Fedex/TNT/UPS
Contact:sales@eIGBT.com
WhatsApp:+86 13410359515
| Part Number | CHT-5520A |
|---|---|
| Manufacturer / Brand | Cissoid |
| Stock Quantity | 158pcs Stock |
| Description | IGBT Power Modules / Transistors & Diodes |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Condition | New Original Stock |
| Warranty | 100% Perfect Functions |
| Lead Time | 2-3days after payment. |
| Payment | PayPal / Telegraphic Transfer / Western Union |
| Shipping by | DHL / Fedex / UPS/TNT |
| Port | HongKong |
| RFQ Email | Sales@eIGBT.com |

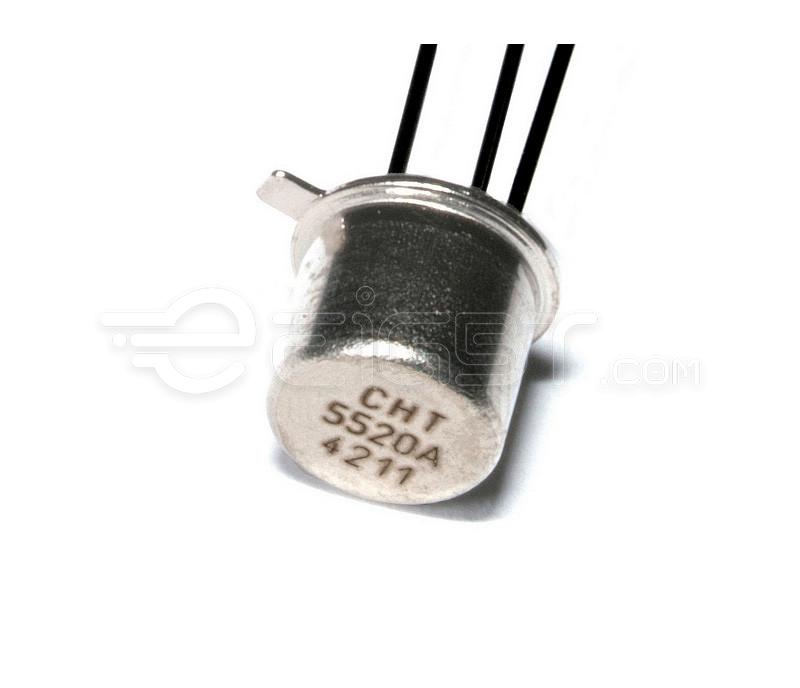

CHT-5520A features high
temperature dual common anode 80V / 300mA diodes packaged in a
hermetically sealed TO18 metal can. It is designed to achieve high
performance in an extremely wide temperature range: typical operation
temperature goes from -55°C to 225°C while keeping leakage currents low.
This dual diode can be used in a variety of applications, including
rectification and general purpose.
●Temperature range: -55°C to +225°C
●Maximum reverse voltage: 80V
●Max forward current @ 225°C: 300mA
●Capacitance: 8.5pF
●Reverse leakage: 8.9µA @ 225°C
●TO18 metal can package
●Clamping
●Voltage multiplier / charge-pumps
●Signal rectification
●General purpose diode
If you need support for your high temperature design, contact Cissoid.
Download CISSOID's Altium Library for IC symbols and package footprints. For installation, read the related Application Note.
Supporting its customers in the manufacturing of high temperature and high reliability hybrid modules, CISSOID delivers most of its CHT products as bare die. Please, do not hesitate to contact CISSOID to request die map information including die dimension, die finish, location and description of the bonding pads.
| Product name | Description | Ordering reference | Package | Marking |
|---|---|---|---|---|
| CALLISTO | Dual diodes, 80V / 300mA - Common anode | CHT-PLA5520A-TO18-T | TO-18 | CHT-5520A |
| CALLISTO | Dual diodes, 80V / 300mA - Common anode | CHT-PLA5598C-D-T | Known Good Die | - |
