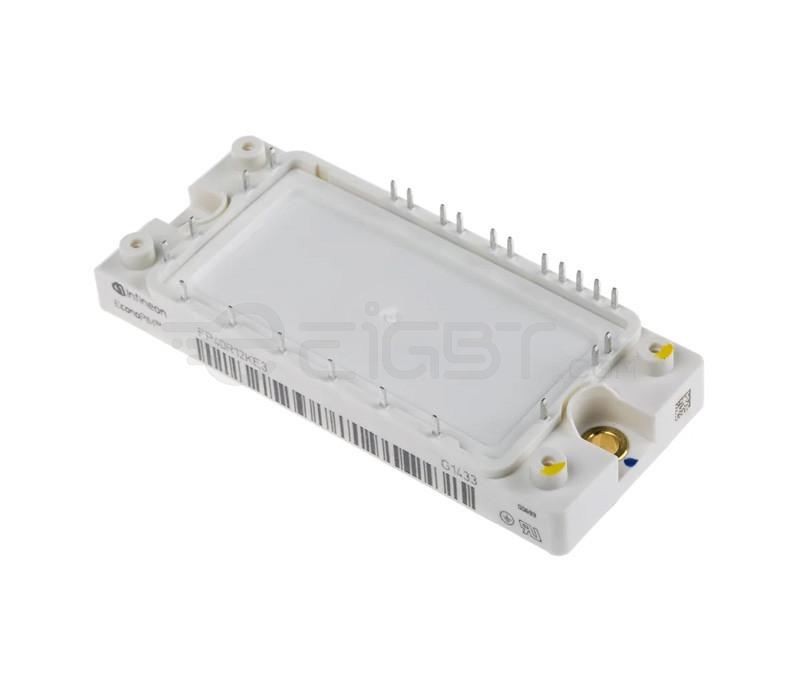

Manufacturer: Infineon
Model:FP40R12KE3BOSA1
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Stock Condition:New original, 208 pcs Stock Available.
Ship From:Hong Kong
Shipment Way:DHL/Fedex/TNT/UPS
Contact:sales@eIGBT.com
WhatsApp:+86 13410359515
| Part Number | FP40R12KE3BOSA1 |
|---|---|
| Manufacturer / Brand | INFINEON |
| Stock Quantity | 208pcs Stock |
| Description | IGBT Modules |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Condition | New Original Stock |
| Warranty | 100% Perfect Functions |
| Lead Time | 2-3days after payment. |
| Payment | PayPal / Telegraphic Transfer / Western Union |
| Shipping by | DHL / Fedex / UPS/TNT |
| Port | HongKong |
| RFQ Email | Sales@eIGBT.com |
The Infineon range of IGBT Modules offer low switching loss for switching up to 60 Khz frequencies.
The
IGBTs span over a range of power modules like the ECONOPACK packages
with collector emitter voltage at 1200V, PrimePACK IGBT half-bridge
chopper modules with NTC up to 1600/1700V. The PrimePACK IGBT’s can be
found in Industrial, commercial, construction and agricultural vehicles.
The N-Channel TRENCHSTOP TM and Fieldstop IGBT Modules are
suitable for hard switching and soft switching applications such as
Inverters, UPS and Industrial drives.
Package styles include: 62mm Modules, EasyPACK, EconoPACKTM2/EconoPACKTM3/EconoPACKTM4
The Insulated Gate Bipolar Transistor or
IGBT is a three-terminal power semiconductor device, noted for high
efficiency and fast switching. The IGBT combines the simple gate-drive
characteristics of the MOSFETs with the high-current and
low–saturation-voltage capability of bipolar transistors by combining an
isolated gate FET for the control input, and a bipolar power transistor
as a switch, in a single device.
| Attribute | Value |
|---|---|
| Configuration | 3 Phase Bridge |
| Transistor Configuration | 3 Phase |
| Maximum Continuous Collector Current | 55 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±20V |
| Channel Type | N |
| Mounting Type | PCB Mount |
| Package Type | EconoPIM2 |
| Pin Count | 24 |
| Maximum Power Dissipation | 210 W |
| Dimensions | 107.5 x 45 x 17mm |
| Height | 17mm |
| Length | 107.5mm |
| Maximum Operating Temperature | +150 °C |
| Width | 45mm |
| Minimum Operating Temperature | -40 °C |
You can fill out the following form or send us an email to Sales@eIGBT.com to get our quotation for the Infineon FP40R12KE3BOSA1 EconoPIM2 N-Channel 3 Phase Bridge IGBT Module We will provide you with best price and delivery time offer as soon as possible.
