ABB HiPak IGBT Module 5SNA 1200E330100

Article source: ABB Library

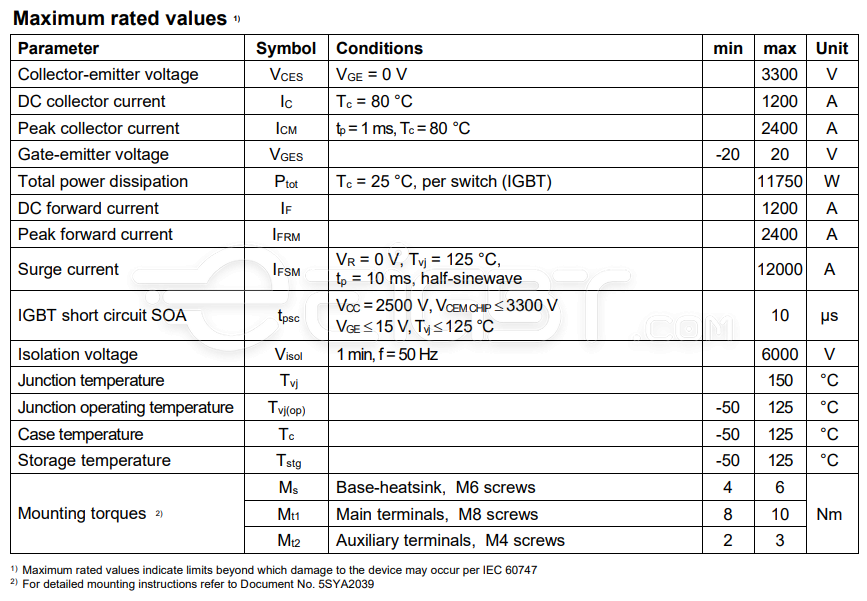

VCE = 3300 V         IC = 1200 A

1. Low-loss, rugged SPT chip-set

2. Smooth switching SPT chip-set for good

EMC

3. Industry standard package

4. High power density

5. AlSiC base-plate for high power cycling

capability

6. AlN substrate for low thermal resistance

7. Improved high reliability package

8. Recognized under UL1557, File E196689
