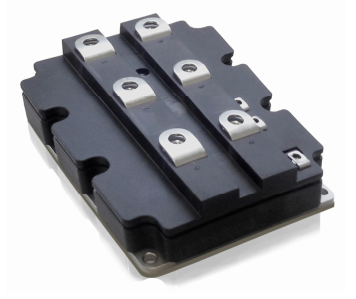

ABB HiPak IGBT Module 5SNA 1800E170100

Article source: ABB Library

VCE = 1700 V         IC = 1800 A

• Low-loss, rugged SPT chip-set

• Smooth switching SPT chip-set for good EMC

• Industry standard package

• High power density

• AlSiC base-plate for high power cycling capability

• AlN substrate for low thermal resistance

• Improved high reliability package

• Recognized under UL1557, File E196689
