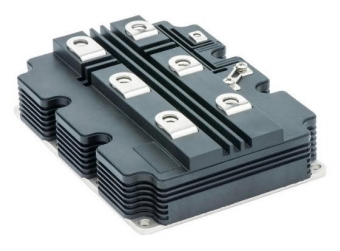

ABB, 5SNA 1000G650300 HiPak IGBT module

Article source: ABB Library

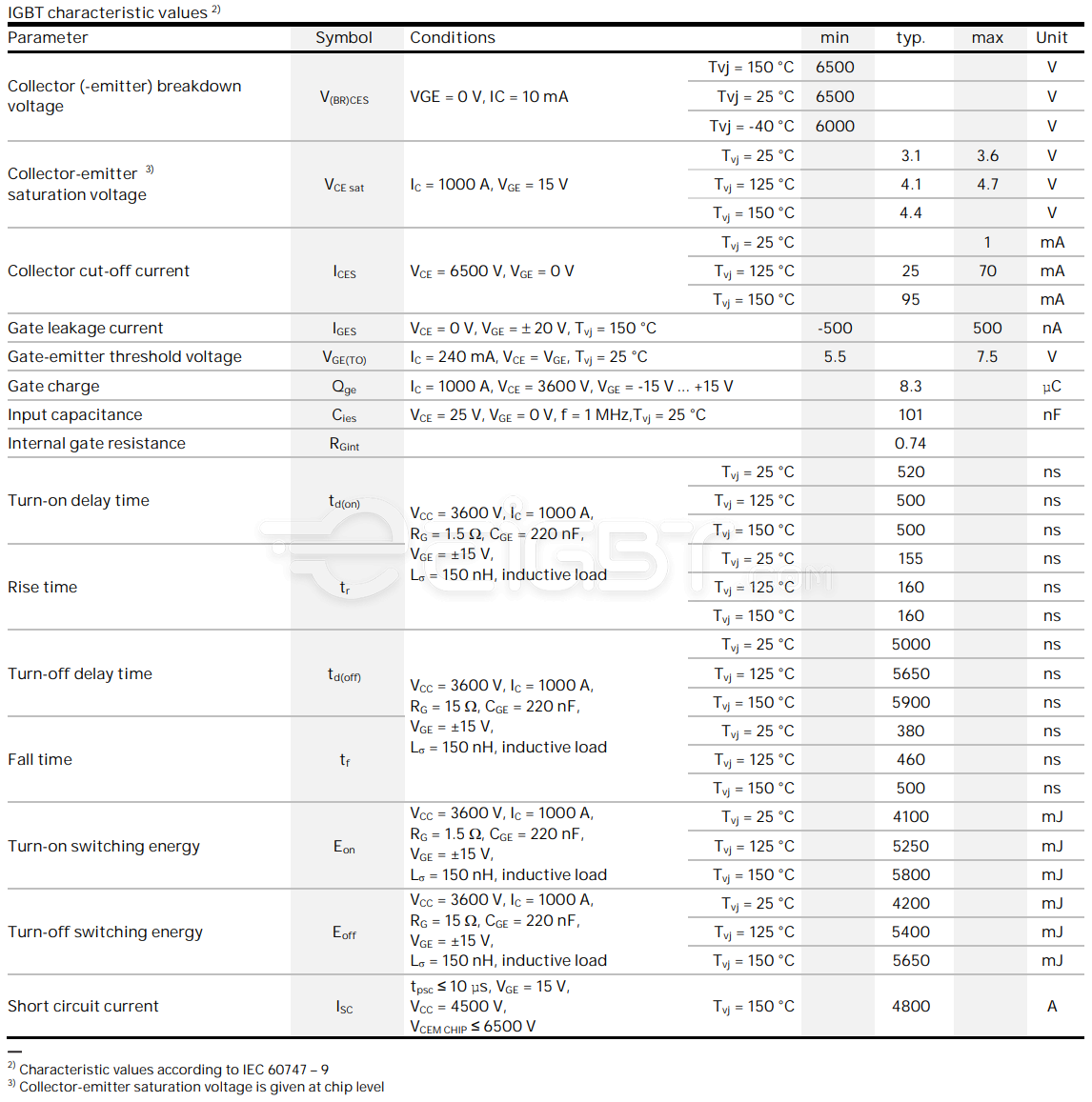

1. VCE = 6500 V

2. IC = 1000 A

3. Ultra-low-loss, rugged SPT++ chip-set

4. Exceptional ruggedness and highest current rating

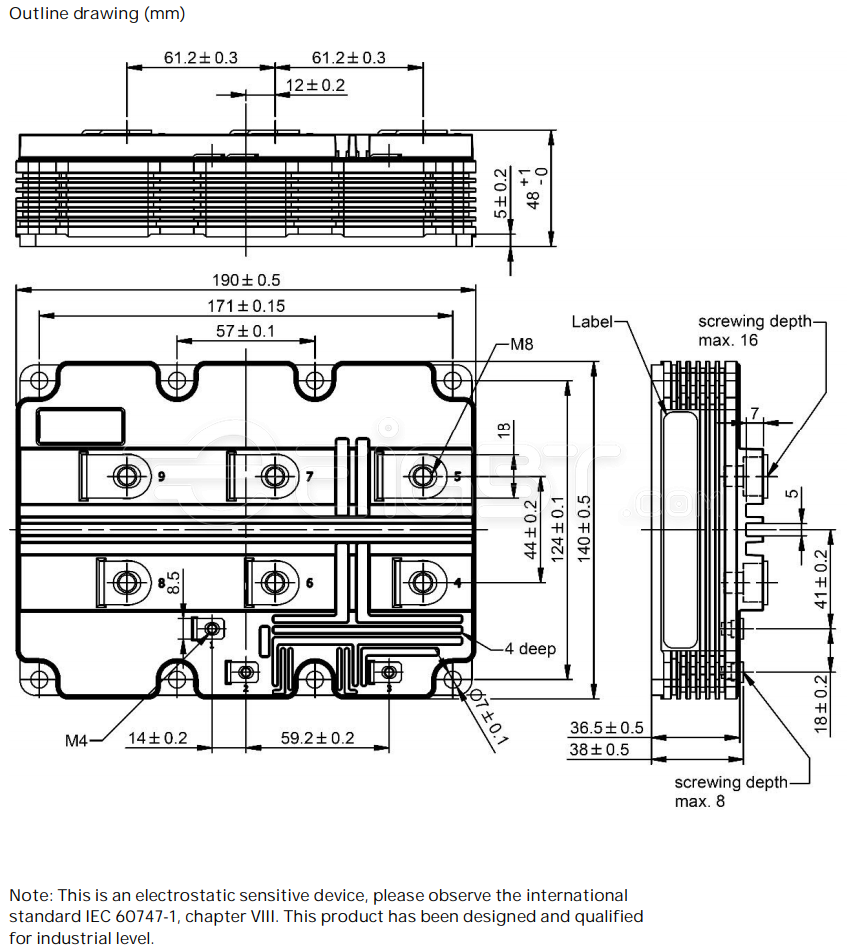

5. High insulation package

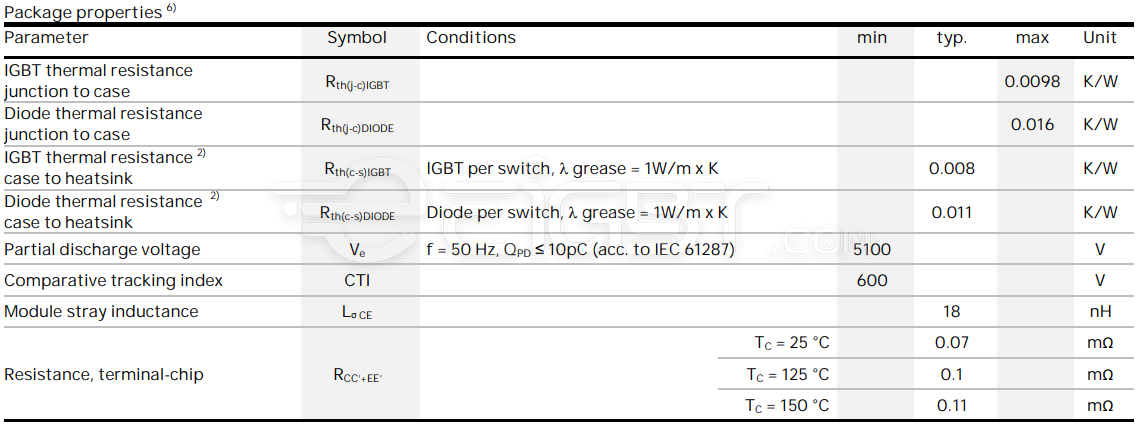

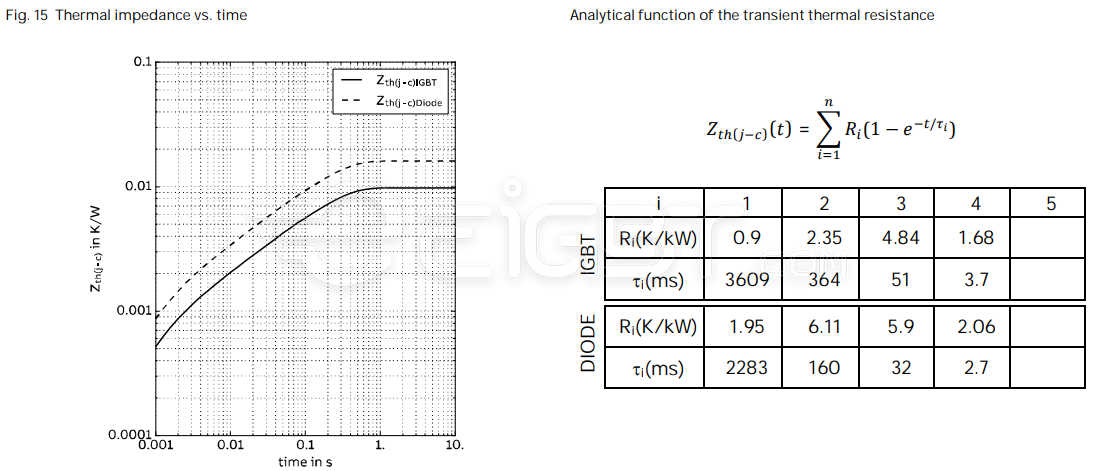

6. AlSiC base-plate and AlN substrate for low thermal resistance and high power cycling capability

7. Recognized under UL1557, File E196689
