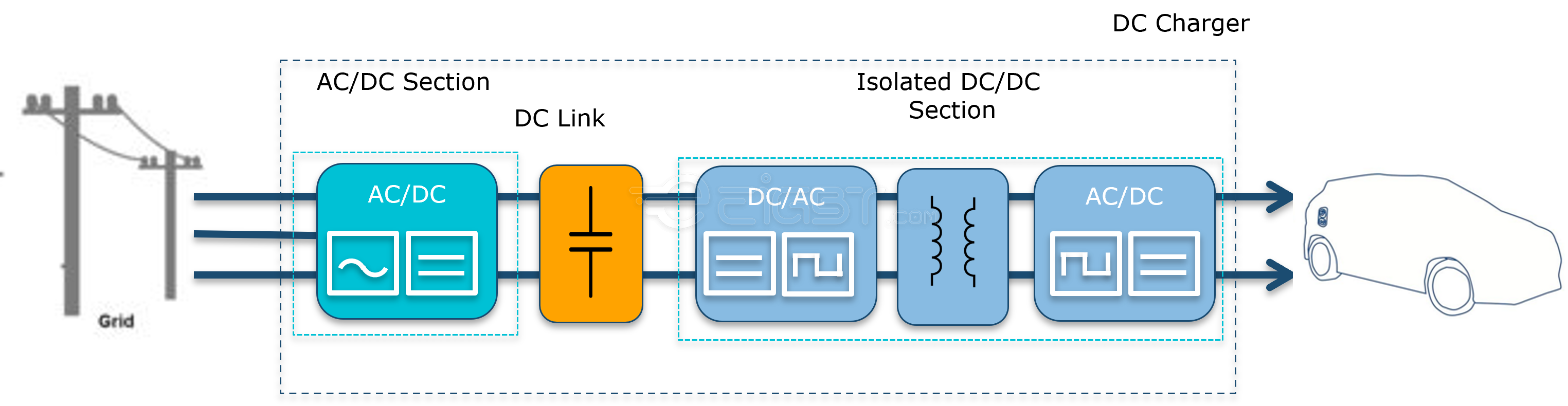

System Architecture 1

This is the state-of-the-art system architecture for DC Charger 10 kW up to 350 kW. Depending on output power, this can be a system built from one or more charger stacks. Supply is taken from low-voltage 3-phase grid.

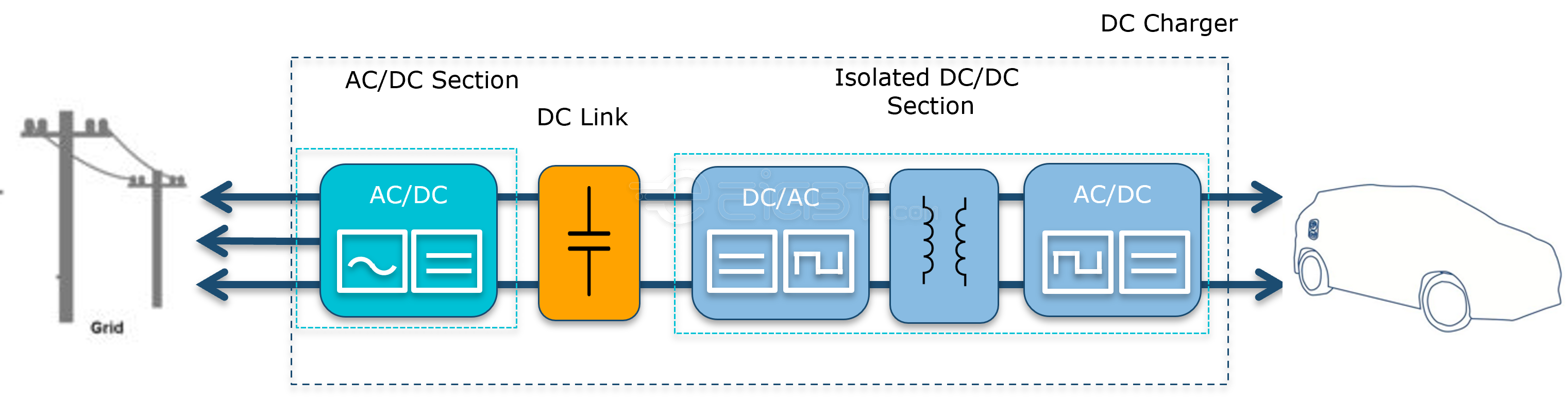

System Architecture 2

The same as system architecture 1 but bi-directional. It is mainly designed for V2x applications.

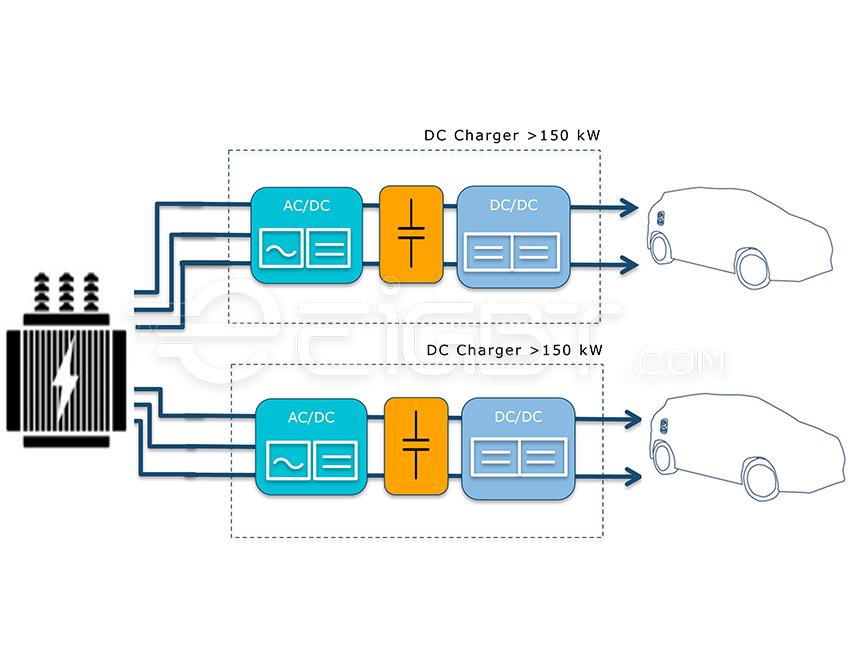

System Architecture 3

This design is aimed to serve the higher power (>150 kW) market, e.g. charging parks. A medium-voltage transformer furnishes power directly to the system. Separated windings per charger needed on the secondary side of transformer. The advantage of this architecture is system cost and efficiency.
