ABB BORDLINE® Battery Module For high performance applications

Article source: ABB Library

BORDLINE® BPW (battery power water-cooled) is a high-power Lithium-ion battery module designed for reliable operation in harsh environments. It is suitable for use as a traction or as an auxiliary battery and designed for use in road and railway vehicles.

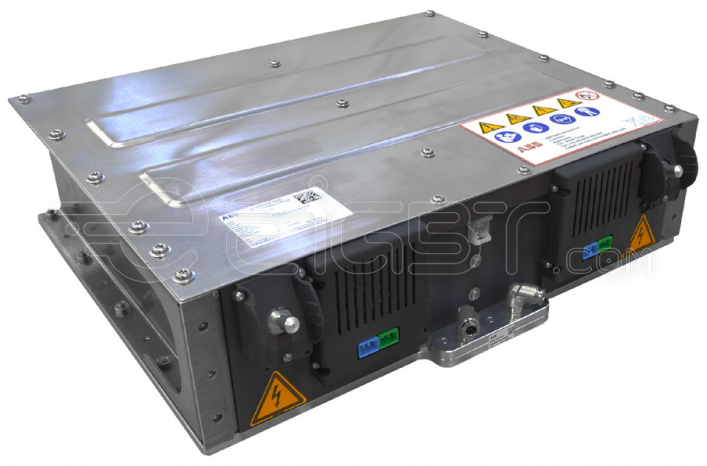

BORDLINE® Battery Module

Applications

• Railway rolling stock

• Electrically propelled road vehicles

- eBus

- eTrucks

• Off-road vehicles

- Mining trucks

- Utility vehicles

Key characteristics

• High level of inherent safety

• Very high cycle life

• High power density

• High energy efficiency

• Excellent fast charging capability

• Precise and stable cell connection with low contact resistance (laser welding)

• Efficient liquid cooling

Modularity and scalability

The modular battery design allows easy scalability in terms of installed energy and allows mechanical integration either on the roof, in the machine room or underfloor of the vehicle.

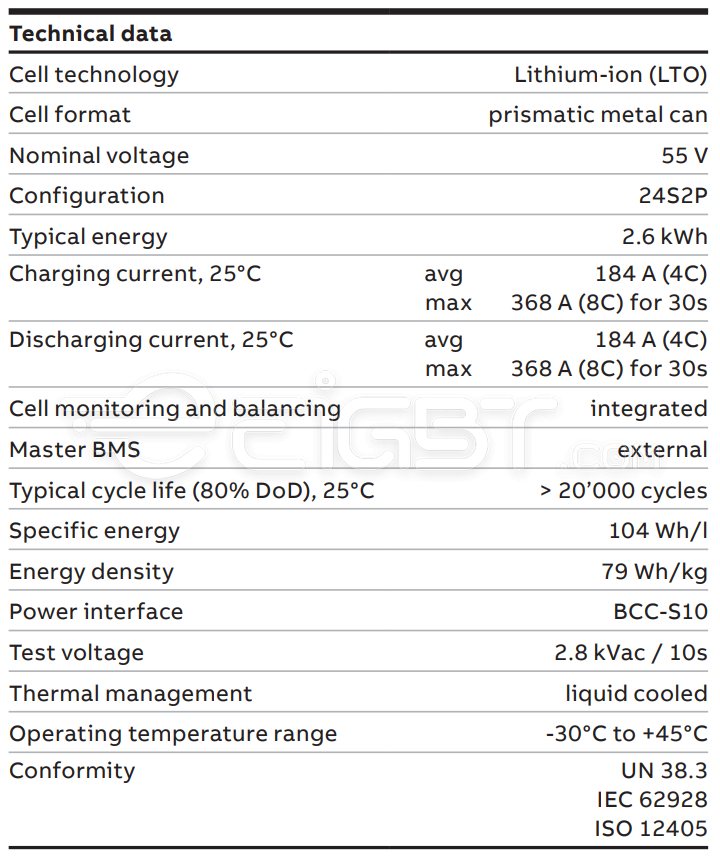

Module characteristics

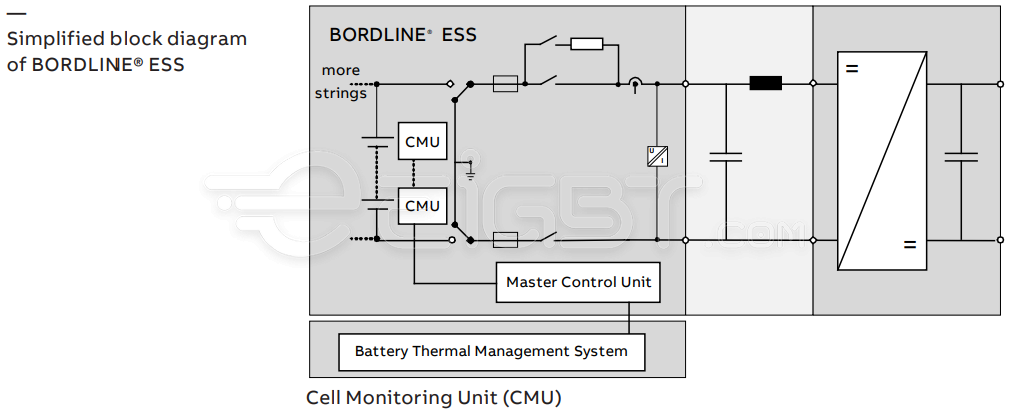

System arrangement

Up to sixteen battery modules can be connected in series to form a battery string and multiple strings can be connected in parallel. The series connection of modules are realized with insulated quick coupling power connectors and with a wired serial bus between the modules and the master control unit.
