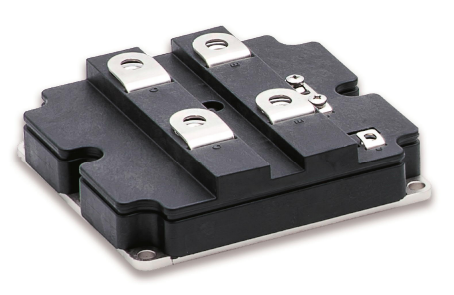

ABB 5SNA 1600N170300 HiPak IGBT Module

VCE = 1700 V

IC = 1600 A

Ultra low-loss, rugged SPT+ chip-set

Smooth switching SPT+ chip-set for good EMC

AlSiC base-plate for high power cycling capability

AlN substrate for low thermal resistance

Improved high reliability package

Recognized under UL1557, File E196689

This is an electrostatic sensitive device, please observe the international standard IEC 60747-1, chap. VIII.

This product has been designed and qualified for Industrial Level.
