Powerex Integrated Power Module

Article source: Power Semiconductor Solution official website

PIPM

Description

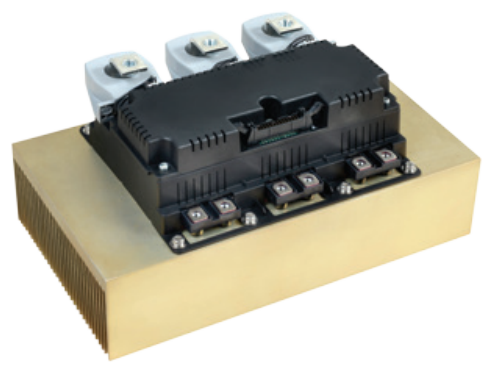

The Powerex Integrated Power Module (PIPM) is a configurable IGBT-based power platform.

Product Ratings and Characteristics

The module has rated power outputs from 75-229 KW and operates on DC bus voltages from 400 to 800 VDC and switching frequencies of up to 20 kHz. The power module can be mounted on various heatsinks, including both forced air and liquid cooled options, dependent upon application requirements.

Applications

Applications include three-phase inverters; DC/DC Convertors; choppers; half or full bridge; and power supply applications. The PIPM is compatible with the NX-Series of Mitsubishi IGBT devices and is ideally suited for energy storage, uninterruptable power supplies (UPS), motor drives, solar, wind, photovoltaics, EV and hybrid electric vehicle applications.

Availability

Powerex IGBT Module Inquiry：

https://eigbt.com/POWEREX.html
